RXVV Electrical wiring
| RXVV-105 RXVV-125 |
| 105℃/125℃輻照交聯阻燃聚烯烴絕緣交聯阻燃聚烯烴護套電機引接電纜（環保） |
|
產品說明： ●額定溫度：105℃/125℃ ●額定電壓：750V ●參考標準：PN-03-2010 ●導體使用單支或絞合0.5-6.0mm2鍍錫或裸銅 ●XLPE絕緣，符合ROHS環保標準 ●絕緣厚度均勻、易裁線、易剝皮 ●用于B級，F(xiàn)級電機引接線. |
PRODUCT DESCRIPTION ●Rated temperature：105℃/125℃ ●Rated voltage：750V ●Reference standard：JB 6213 ●Solid or stranded ,tinned or bare copper conductor0.5-6.0mm2 ●XLPE insulation ,comply with ROHS environmental standard ●Uniform insulation thickness to ensure easy stripping and cutting ●For used leads wiring of B,F insulation class motor |
 |
|
印字 MARKING RXVV-105 N*( )mm2 105℃ 750V --CHANG ZHOU PAINUO-- LF RXVV-125 N*( )mm2 125℃ 750V --CHANG ZHOU PAINUO-- LF |

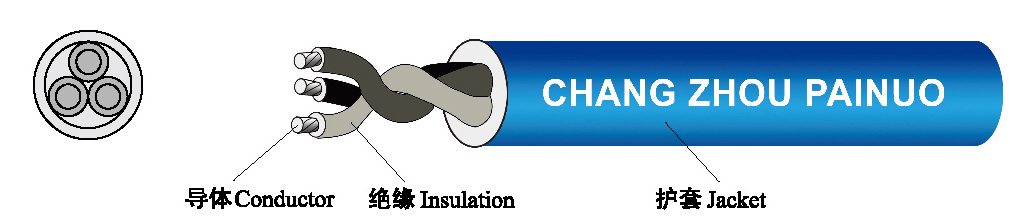

| 產品結構 CABLE CONSTRUCT |
| 導體 CONDUCTOR | 絕緣 INSULATION | 護套 JACKET |
MAX導體電阻 MAX.COND. RESISTANCE （Ω/Km,20℃） |
標準長度 STANDARD PUT-UP (M/COIL) |
||||
|
規格 AWG |
構造 CONSTRUCTION |
外徑 DIA. |
厚度 THICKNESS |
標稱外徑 O.D. |
厚度 THICKNESS |
標稱外徑 O.D. |
||
| (No./mm) | (mm) | （mm） | (mm) | （mm） | (mm) | |||
| 2×0.5 | 16/0.2 | 0.95 | 0.6 | 2.2±0.1 | 0.8 | 6.0±0.2 | 40.1 | 200 |
| 2×0.75 | 24/0.2 | 1.25 | 0.6 | 2.50±0.1 | 0.8 | 6.8±0.2 | 26.7 | |
| 3×0.5 | 16/0.2 | 0.95 | 0.6 | 2.2±0.1 | 0.8 | 6.3±0.2 | 40.1 | |
| 3×0.75 | 24/0.2 | 1.25 | 0.6 | 2.50±0.1 | 0.9 | 7.2±0.2 | 26.7 | 100 |
| 3×1.0 | 32/0.2 | 1.35 | 0.6 | 2.60±0.1 | 1 | 7.6±0.2 | 20.0 | |
| 3×1.5 | 30/0.25 | 1.65 | 0.7 | 3.15±0.1 | 1.3 | 9.4±0.3 | 13.7 | |
| 3×2.5 | 49/0.25 | 2.1 | 0.7 | 3.65±0.1 | 1.5 | 10.8±0.3 | 8.21 | |
| 3×4.0 | 56/0.3 | 2.7 | 0.7 | 4.2±0.1 | 1.5 | 12.0±0.5 | 5.09 | |
| 3×6.0 | 84/0.3 | 3.3 | 0.8 | 5.1±0.1 | 1.6 | 14.2±0.5 | 3.39 | |
| 4×0.75 | 24/0.2 | 1.25 | 0.6 | 2.50±0.1 | 0.9 | 7.8±0.3 | 26.7 | |
| 4×1.0 | 32/0.2 | 1.35 | 0.6 | 2.60±0.1 | 1 | 8.3±0.3 | 20.0 | |
| 4×1.5 | 30/0.25 | 1.65 | 0.7 | 3.15±0.1 | 1.3 | 10.2±0.3 | 13.7 | |
| 4×2.5 | 49/0.25 | 2.1 | 0.7 | 3.65±0.1 | 1.5 | 11.8±0.5 | 8.21 | |
| 4×4.0 | 56/0.3 | 2.7 | 0.7 | 4.2±0.1 | 1.5 | 13.1±0.5 | 5.09 | |
| 4×6.0 | 84/0.3 | 3.3 | 0.8 | 5.1±0.1 | 1.6 | 15.5±0.5 | 3.39 | |
| 5×1.0 | 32/0.2 | 1.35 | 0.6 | 2.60±0.1 | 1 | 9.0±0.3 | 20.0 | |
| 5×1.5 | 30/0.25 | 1.65 | 0.7 | 3.15±0.1 | 1.3 | 11±0.3 | 13.7 | |
| 6×1.5 | 30/0.25 | 1.65 | 0.7 | 3.15±0.1 | 1.3 | 12±0.3 | 13.7 | |
| 注：單根導體結構見附表，系列外的結構和規格可按供需雙方商定。 |
